!pip install tf_gnns
!pip install --quiet 'networkx<3'
Requirement already satisfied: tf_gnns in /usr/local/lib/python3.11/dist-packages (0.1.7)
#@title ##### `tf_gnns` license
# Copyright 2021, Mylonas Charilaos. All Rights Reserved.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
# ============================================================================
# ##### `DeepMind GraphNets` license
# Copyright 2018 The GraphNets Authors. All Rights Reserved.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
# ============================================================================
###############################################################################
# Changes to the original file:
# ------------------------------
# This notebook is a modified version of the `deepmind/graph_nets` example code
# which demonstrates the use of graph nets to list sorting. The parts of code
# from the original file are the sampling of GraphTuples which contain the input
# and output graphs. The parts that are different are the parts needed to use
# the tf_gnns library instead of the graph nets. More speciffically, a function
# that casts graphtuples to tensor_dicts is created, and an EncodeProcessDecode
# network almost identical to the one used in the paper is created.
# Visualization is also different from the original file, yet very similar.
List sorting with GNNs
A large part of the code for this example is taken from the deepmind/graph_nets library (the Apache licence of graph_nets is also attached). In this notebook, the exact code that generates the data used in the DeepMind graph_nets example is used, but the GN used for processing is usgin the tf_gnns functionality (no tf 1.x or Sonnet).
install_graph_nets_library = "Yes" #@param ["Yes", "No"]
if install_graph_nets_library.lower() == "yes":
print("Installing Graph Nets library and dependencies:")
print("Output message from command:\n")
!pip install "graph_nets>=1.1" "dm-sonnet>=2.0.0b0"
else:
print("Skipping installation of Graph Nets library")
Installing Graph Nets library and dependencies:
Output message from command:
Requirement already satisfied: graph_nets>=1.1 in /usr/local/lib/python3.11/dist-packages (1.1.0)
Requirement already satisfied: dm-sonnet>=2.0.0b0 in /usr/local/lib/python3.11/dist-packages (2.0.2)
Requirement already satisfied: absl-py in /usr/local/lib/python3.11/dist-packages (from graph_nets>=1.1) (1.4.0)
Requirement already satisfied: dm-tree in /usr/local/lib/python3.11/dist-packages (from graph_nets>=1.1) (0.1.9)
Requirement already satisfied: future in /usr/local/lib/python3.11/dist-packages (from graph_nets>=1.1) (1.0.0)
Requirement already satisfied: networkx in /usr/local/lib/python3.11/dist-packages (from graph_nets>=1.1) (2.8.8)
Requirement already satisfied: numpy in /usr/local/lib/python3.11/dist-packages (from graph_nets>=1.1) (2.0.2)
Requirement already satisfied: setuptools in /usr/local/lib/python3.11/dist-packages (from graph_nets>=1.1) (75.2.0)
Requirement already satisfied: six in /usr/local/lib/python3.11/dist-packages (from graph_nets>=1.1) (1.17.0)
Requirement already satisfied: tabulate>=0.7.5 in /usr/local/lib/python3.11/dist-packages (from dm-sonnet>=2.0.0b0) (0.9.0)
Requirement already satisfied: wrapt>=1.11.1 in /usr/local/lib/python3.11/dist-packages (from dm-sonnet>=2.0.0b0) (1.17.2)
Requirement already satisfied: attrs>=18.2.0 in /usr/local/lib/python3.11/dist-packages (from dm-tree->graph_nets>=1.1) (25.3.0)
#@title Imports
## Needed for manipulating the samplers from the graph_nets library (and making
# a 1-to-1 comparisson of the two frameworks)
from graph_nets import utils_np
from graph_nets import utils_tf
import matplotlib.pyplot as plt
import numpy as np
import tensorflow as tf
from tf_gnns.models.graphnet import GraphNetMLP, GNCellMLP, GraphIndep
import tensorflow as tf
SEED = 1
np.random.seed(SEED)
tf.random.set_seed(SEED)
#@title Helper functions { form-width: "30%" }
# pylint: disable=redefined-outer-name
def create_graph_dicts_tf(num_examples, num_elements_min_max):
"""Generate graphs for training.
Args:
num_examples: total number of graphs to generate
num_elements_min_max: a 2-tuple with the minimum and maximum number of
values allowable in a graph. The number of values for a graph is
uniformly sampled withing this range. The upper bound is exclusive, and
should be at least 2 more than the lower bound.
Returns:
inputs: contains the generated random numbers as node values.
sort_indices: contains the sorting indices as nodes. Concretely
inputs.nodes[sort_indices.nodes] will be a sorted array.
ranks: the rank of each value in inputs normalized to the range [0, 1].
"""
num_elements = tf.random.uniform(
[num_examples],
minval=num_elements_min_max[0],
maxval=num_elements_min_max[1],
dtype=tf.int32)
inputs_graphs = []
sort_indices_graphs = []
ranks_graphs = []
for i in range(num_examples):
values = tf.random.uniform(shape=[num_elements[i]])
sort_indices = tf.cast(
tf.argsort(values, axis=-1), tf.float32)
ranks = tf.cast(
tf.argsort(sort_indices, axis=-1), tf.float32) / (
tf.cast(num_elements[i], tf.float32) - 1.0)
inputs_graphs.append({"nodes": values[:, None]})
sort_indices_graphs.append({"nodes": sort_indices[:, None]})
ranks_graphs.append({"nodes": ranks[:, None]})
return inputs_graphs, sort_indices_graphs, ranks_graphs
def create_linked_list_target(batch_size, input_graphs):
"""Creates linked list targets.
Returns a graph with the same number of nodes as `input_graph`. Each node
contains a 2d vector with targets for a 1-class classification where only one
node is `True`, the smallest value in the array. The vector contains two
values: [prob_true, prob_false].
It also contains edges connecting all nodes. These are again 2d vectors with
softmax targets [prob_true, prob_false]. An edge is True
if n+1 is the element immediately after n in the sorted list.
Args:
batch_size: batch size for the `input_graphs`.
input_graphs: a `graphs.GraphsTuple` which contains a batch of inputs.
Returns:
A `graphs.GraphsTuple` with the targets, which encode the linked list.
"""
target_graphs = []
for i in range(batch_size):
input_graph = utils_tf.get_graph(input_graphs, i)
num_elements = tf.shape(input_graph.nodes)[0]
si = tf.cast(tf.squeeze(input_graph.nodes), tf.int32)
nodes = tf.reshape(tf.one_hot(si[:1], num_elements), (-1, 1))
x = tf.stack((si[:-1], si[1:]))[None]
y = tf.stack(
(input_graph.senders, input_graph.receivers), axis=1)[:, :, None]
edges = tf.reshape(
tf.cast(
tf.reduce_any(tf.reduce_all(tf.equal(x, y), axis=1), axis=1),
tf.float32), (-1, 1))
target_graphs.append(input_graph._replace(nodes=nodes, edges=edges))
return utils_tf.concat(target_graphs, axis=0)
def compute_accuracy(target, output):
"""Calculate model accuracy.
Returns the number of correctly predicted links and the number
of completely solved list sorts (100% correct predictions).
Args:
target: A `graphs.GraphsTuple` that contains the target graph.
output: A `graphs.GraphsTuple` that contains the output graph.
Returns:
correct: A `float` fraction of correctly labeled nodes/edges.
solved: A `float` fraction of graphs that are completely correctly labeled.
"""
tdds = utils_np.graphs_tuple_to_data_dicts(target)
odds = utils_np.graphs_tuple_to_data_dicts(output)
cs = []
ss = []
for td, od in zip(tdds, odds):
num_elements = td["nodes"].shape[0]
xn = np.argmax(td["nodes"], axis=-1)
yn = np.argmax(od["nodes"], axis=-1)
xe = np.reshape(
np.argmax(
np.reshape(td["edges"], (num_elements, num_elements, 2)), axis=-1),
(-1,))
ye = np.reshape(
np.argmax(
np.reshape(od["edges"], (num_elements, num_elements, 2)), axis=-1),
(-1,))
c = np.concatenate((xn == yn, xe == ye), axis=0)
s = np.all(c)
cs.append(c)
ss.append(s)
correct = np.mean(np.concatenate(cs, axis=0))
solved = np.mean(np.stack(ss))
return correct, solved
def create_data(batch_size, num_elements_min_max):
"""Returns graphs containing the inputs and targets for classification.
Refer to create_data_dicts_tf and create_linked_list_target for more details.
Args:
batch_size: batch size for the `input_graphs`.
num_elements_min_max: a 2-`tuple` of `int`s which define the [lower, upper)
range of the number of elements per list.
Returns:
inputs: a `graphs.GraphsTuple` which contains the input list as a graph.
targets: a `graphs.GraphsTuple` which contains the target as a graph.
sort_indices: a `graphs.GraphsTuple` which contains the sort indices of
the list elements a graph.
ranks: a `graphs.GraphsTuple` which contains the ranks of the list
elements as a graph.
"""
inputs, sort_indices, ranks = create_graph_dicts_tf(
batch_size, num_elements_min_max)
inputs = utils_tf.data_dicts_to_graphs_tuple(inputs)
sort_indices = utils_tf.data_dicts_to_graphs_tuple(sort_indices)
ranks = utils_tf.data_dicts_to_graphs_tuple(ranks)
inputs = utils_tf.fully_connect_graph_dynamic(inputs)
sort_indices = utils_tf.fully_connect_graph_dynamic(sort_indices)
ranks = utils_tf.fully_connect_graph_dynamic(ranks)
targets = create_linked_list_target(batch_size, sort_indices)
nodes = tf.concat((targets.nodes, 1.0 - targets.nodes), axis=1)
edges = tf.concat((targets.edges, 1.0 - targets.edges), axis=1)
targets = targets._replace(nodes=nodes, edges=edges)
return inputs, targets, sort_indices, ranks
def create_loss(target, outputs):
"""Returns graphs containing the inputs and targets for classification.
Refer to create_data_dicts_tf and create_linked_list_target for more details.
Args:
target: a `graphs.GraphsTuple` which contains the target as a graph.
outputs: a `list` of `graphs.GraphsTuple`s which contains the model
outputs for each processing step as graphs.
Returns:
A `list` of ops which are the loss for each processing step.
"""
# if not isinstance(outputs, collections.Sequence):
# outputs = [outputs]
losss = [
tf.compat.v1.losses.softmax_cross_entropy(target.nodes, output.nodes) +
tf.compat.v1.losses.softmax_cross_entropy(target.edges, output.edges)
for output in outputs
]
return tf.stack(losss)
def plot_linked_list(ax, graph, sort_indices):
"""Plot a networkx graph containing weights for the linked list probability."""
nd = len(graph.nodes())
probs = np.zeros((nd, nd))
for edge in graph.edges(data=True):
probs[edge[0], edge[1]] = edge[2]["features"][0]
ax.matshow(probs[sort_indices][:, sort_indices], cmap="viridis")
ax.grid(False)
# pylint: enable=redefined-outer-name
#@title Visualize the sort task { form-width: "30%" }
num_elements_min_max = (5, 10)
inputs, targets, sort_indices, ranks = create_data(
1, num_elements_min_max)
inputs_nodes = inputs.nodes.numpy()
targets = utils_tf.nest_to_numpy(targets)
sort_indices_nodes = sort_indices.nodes.numpy()
ranks_nodes = ranks.nodes.numpy()
sort_indices = np.squeeze(sort_indices_nodes).astype(int)
# Plot sort linked lists.
# The matrix plots show each element from the sorted list (rows), and which
# element they link to as next largest (columns). Ground truth is a diagonal
# offset toward the upper-right by one.
fig = plt.figure(1, figsize=(4, 4))
fig.clf()
ax = fig.add_subplot(1, 1, 1)
plot_linked_list(ax,
utils_np.graphs_tuple_to_networkxs(targets)[0], sort_indices)
ax.set_title("Element-to-element links for sorted elements")
ax.set_axis_off()
fig = plt.figure(2, figsize=(10, 2))
fig.clf()
ax1 = fig.add_subplot(1, 3, 1)
ax2 = fig.add_subplot(1, 3, 2)
ax3 = fig.add_subplot(1, 3, 3)
i = 0
num_elements = ranks_nodes.shape[0]
inputs = np.squeeze(inputs_nodes)
ranks = np.squeeze(ranks_nodes * (num_elements - 1.0)).astype(int)
x = np.arange(inputs.shape[0])
ax1.set_title("Inputs")
ax1.barh(x, inputs, color="b")
ax1.set_xlim(-0.01, 1.01)
ax2.set_title("Sorted")
ax2.barh(x, inputs[sort_indices], color="k")
ax2.set_xlim(-0.01, 1.01)
ax3.set_title("Ranks")
ax3.barh(x, ranks, color="r")
_ = ax3.set_xlim(0, len(ranks) + 0.5)
from tf_gnns.lib.gt_ops import _concat_tensordicts
from tf_gnns.lib.gt_ops import _add_gt
class EncodeProcessDecode(tf.keras.Model):
"""
The same model as in graph_nets library (16 layer wide, 2-layer ReLU MLPs
with activation at the last layer and layer normalization as MLPs):
Graphic from `graph_nets` library:
Hidden(t) Hidden(t+1)
| ^
*---------* | *------* | *---------*
| | | | | | | |
Input --->| Encoder | *->| Core |--*->| Decoder |---> Output(t)
| |---->| | | |
*---------* *------* *---------*
In deepmind/graph_nets there is an additional linear GraphIndependent layer
to the decoder with dense MLPs than the ones shown here.
"""
def __init__(self, num_processing_steps = 10, num_units=16):
super(EncodeProcessDecode,self).__init__()
self.gn_enc = GraphIndep(num_units, gn_mlp_units = [num_units,num_units],
layernorm_last_layer = True,
activate_last_layer = True)
self.gn_core = GNCellMLP(num_units, core_size=num_units,
aggregation_function = 'sum',
layernorm_last_layer = True,
activate_last_layer = True)
# The following two layers are used to make an implementation closer
# to what the deepmind/graph_nets library implements.
# In tf_gnns one may alteratively use a single decoder that outputs
# 2-dim outputs using ... "gn_mlp_units = [num_units, num_units, 2]"
self.gn_dec = GraphIndep(num_units,gn_mlp_units = [num_units,num_units],
layernorm_last_layer = True,
activate_last_layer = True)
self.gn_output_transform = GraphIndep(2, []) # nodes and edges are both with output
# size 2.
self.num_processing_steps = num_processing_steps
def call(self, graph_in):
g_ = self.gn_enc(graph_in)
g_0_ = g_.copy()
outputs = [];
for ii in range(self.num_processing_steps):
g_ = self.gn_core(_concat_tensordicts(g_, g_0_))
g_to_dec = self.gn_dec(g_)
outputs.append(self.gn_output_transform(g_to_dec))
return outputs
#@title Set up model training and evaluation { form-width: "30%" }
# Model parameters.
# Number of processing (message-passing) steps.
num_processing_steps = 10
# Data / training parameters.
num_training_iterations = 6000
batch_size_tr = 32
batch_size_ge = 100
# Number of elements in each list is sampled uniformly from this range.
num_elements_min_max_tr = (8, 17)
num_elements_min_max_ge = (16, 33)
# Data.
if 'get_data' not in locals().keys():
@tf.function
def get_data():
inputs_tr, targets_tr, sort_indices_tr, _ = create_data(
batch_size_tr, num_elements_min_max_tr)
inputs_tr = utils_tf.set_zero_edge_features(inputs_tr, 1)
inputs_tr = utils_tf.set_zero_global_features(inputs_tr, 1)
# Test/generalization.
inputs_ge, targets_ge, sort_indices_ge, _ = create_data(
batch_size_ge, num_elements_min_max_ge)
inputs_ge = utils_tf.set_zero_edge_features(inputs_ge, 1)
inputs_ge = utils_tf.set_zero_global_features(inputs_ge, 1)
targets_tr = utils_tf.set_zero_global_features(targets_tr, 1)
targets_ge = utils_tf.set_zero_global_features(targets_ge, 1)
return inputs_tr, targets_tr, sort_indices_tr, inputs_ge, targets_ge, sort_indices_ge
inputs_tr, targets_tr, sort_indices_tr, inputs_ge, targets_ge, sort_indices_ge = get_data()
def to_tensor_dict(v):
vout = {'senders' : v.senders,
'receivers' : v.receivers,
'edges' : v.edges,
'nodes' : v.nodes,
'n_nodes' : v.n_node,
'n_edges' : v.n_edge,
'global_attr':v.globals,
'global_reps_for_nodes' : tf.repeat(tf.range(v.n_node.shape[0]),v.n_node),
'global_reps_for_edges' : tf.repeat(tf.range(v.n_edge.shape[0]), v.n_edge),
'n_graphs' : tf.shape(v.n_node)[0]
}
return vout
def get_data_td():
in_tr, out_tr, sort_tr, in_ge, out_ge, inds_ge = get_data()
return to_tensor_dict(in_tr), to_tensor_dict(out_tr), sort_tr, to_tensor_dict(in_ge), to_tensor_dict(out_ge), inds_ge
model = EncodeProcessDecode(num_processing_steps=num_processing_steps)
in_tr, out_tr, _,_,_,_ = get_data_td()
out = model(in_tr)
losses = []
accuracy_train, accuracy_test = [[],[]]
opt = tf.keras.optimizers.Adam(learning_rate = 1e-3, epsilon = 1e-8, clipnorm=1.)
def accuracy_correct_sort(nbatches = 1):
"""
Computes for the train and test set how many complete sequences are correctly
sorted.
"""
pct_correct_graphs_g = pct_correct_graphs_t = 0.
for tt in range(nbatches):
in_t, out_t, s_t, in_g, out_g, s_g = get_data_td()
out_g_hat = model(in_g)[-1]
out_t_hat = model(in_t)[-1]
pct_correct_graphs_g += tf.reduce_sum(tf.math.unsorted_segment_prod(tf.cast(tf.argmax(out_g_hat['edges'],1) == tf.argmax(out_g['edges'],1), tf.int32),out_g['global_reps_for_edges'], out_g['n_graphs']))/out_g['n_graphs']
pct_correct_graphs_t += tf.reduce_sum(tf.math.unsorted_segment_prod(tf.cast(tf.argmax(out_t_hat['edges'],1) == tf.argmax(out_t['edges'],1), tf.int32),out_t['global_reps_for_edges'], out_t['n_graphs']))/out_t['n_graphs']
return pct_correct_graphs_g/nbatches, pct_correct_graphs_t/nbatches
import IPython
@tf.function
def eval_loss(input, target):
out = model(input)
edge_loss = 0.
node_loss = 0.
for o in out:
edge_loss += tf.nn.softmax_cross_entropy_with_logits(target['edges'],o['edges'])
node_loss += tf.nn.softmax_cross_entropy_with_logits(target['nodes'],o['nodes'])
return tf.reduce_mean(node_loss) + tf.reduce_mean(edge_loss)
@tf.function
def train_step():
in_t, out_t, out_inds_t,in_v,out_v, out_inds_g = get_data_td()
with tf.GradientTape() as tape:
loss = eval_loss(in_t, out_t)
grad = tape.gradient(loss, model.weights)
opt.apply_gradients(zip(grad, model.weights))
return loss
import matplotlib.pyplot as pplot
from tqdm import tqdm
from IPython.display import clear_output
in_,out_, s_ , _,_,_ = get_data_td()
out_h_ = model(in_)[-1]
step = 0
if 'start_iteration' not in locals():
start_iteration = 0
else:
start_iteration = step
for step in tqdm(range(start_iteration,num_training_iterations)):
loss = train_step()
losses.append(loss)
if step % 100 == 0:
clear_output()

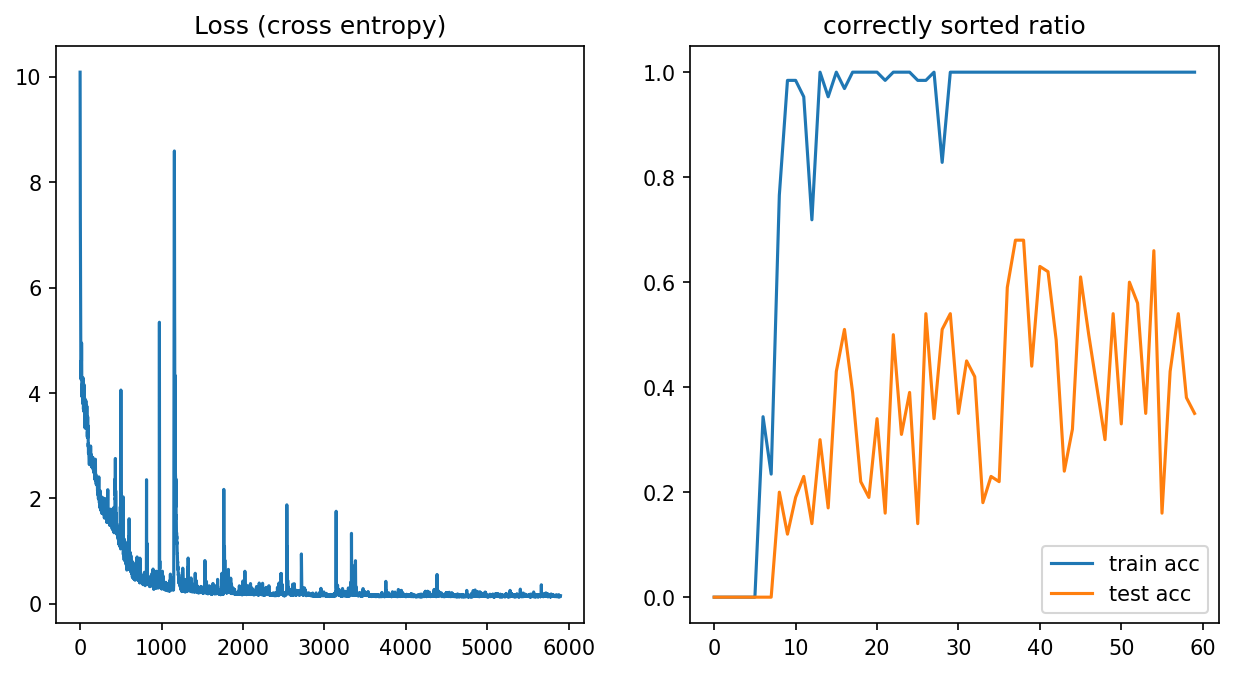

pplot.figure(figsize = (10,5), dpi = 150)
test_acc, train_acc = accuracy_correct_sort()
accuracy_test.append( test_acc)
accuracy_train.append(train_acc)
pplot.subplot(1,2,1)
pplot.plot(losses)
pplot.title("Loss (cross entropy)")
pplot.subplot(1,2,2)
pplot.plot(accuracy_train, label = "train acc")
pplot.grid()
pplot.plot(accuracy_test, label = "test acc")
pplot.grid()
pplot.legend()
pplot.title("correctly sorted ratio")
pplot.pause(0.1)
pplot.show()
100%|██████████| 6000/6000 [11:47<00:00, 8.48it/s]
Note
In earlier versions of this notebook there was a comparisson with DeepMind GraphNets showing comparable performance.
DeepMind does not seem to maintain the repo anymore, so there is no comparisson.
